Digitale Drukopnemer

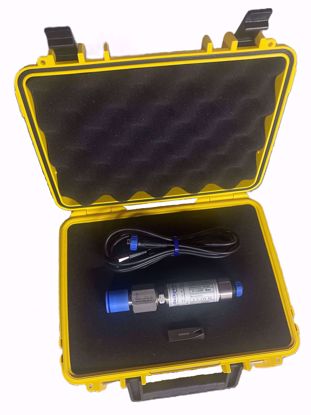

0-1000 Bar Digital Pressure Recording System
Recording range: 0-1.000 bar
+/-0,25% accuracy of full scale
Process Connection: 1/2" BSP male acc. EN 837
Wetted parts Stainless Steel AISI 316
USB-A Calbe, to connect to a PC, length: 2 meters
The transducer has a built in temperature probe, for indication only.

Easy to Learn Software
Recording of test Pressure and Temperature

Comes with a USB Stick with Backpacker Pressure Recorder Software
compatible with Windows 10 and Windows 11. (Windows only)

USB Stick also works a license device, USB stick should be kept in de PC when using the sortware

When using the Backpacker Recorder software with a Touchscreen PC, you have the possibility to draw your signature on screen when approving the test and automatically add it to your Test Certificate .
The software also can generate a PDF, send a PDF by Mail, or export the data to a CSV file.

Self-explanatory software, no course is required

Including pressure calibration certificate
