0-1000 Bar Digitale Drukopnemer, 0,25%

Wees de eerste om dit product te beoordelen

€2847,50 excl. btw

0-1000 Bar Digital Pressure Recording System
Recording range: 0-1.000 bar
+/-0,25% accuracy of full scale
Process Connection: 1/2" BSP male acc. EN 837
Wetted parts Stainless Steel AISI 316
USB-A Calbe, to connect to a PC, length: 2 meters
The transducer has a built in temperature probe, for indication only.

Easy to Learn Software
Recording of test Pressure and Temperature

Comes with a USB Stick with Backpacker Pressure Recorder Software
compatible with Windows 10 and Windows 11. (Windows only)

USB Stick also works a license device, USB stick should be kept in de PC when using the sortware

When using the Backpacker Recorder software with a Touchscreen PC, you have the possibility to draw your signature on screen when approving the test and automatically add it to your Test Certificate .
The software also can generate a PDF, send a PDF by Mail, or export the data to a CSV file.

Self-explanatory software, no course is required

Including pressure calibration certificate

Huidige voorraad: 1 op voorraad

Artikelnummer: 1800-1000-1

Levering: Besteld voor 14:00 zelfde dag verstuurd, behalve weekend en feestdagen. (wanneer op voorraad)

Aantal:

Bij vragen bel +31-(0)592-291771

Backpacker Digital Pressure Recorder

FEATURES:

Recording Range: 0-1000 bar ( 0-14.500 psi )

High Accuracy: 0.25% Full Scale

Easy to Learn Software

Recording of test Pressure and Temperature

THE SYSTEM:

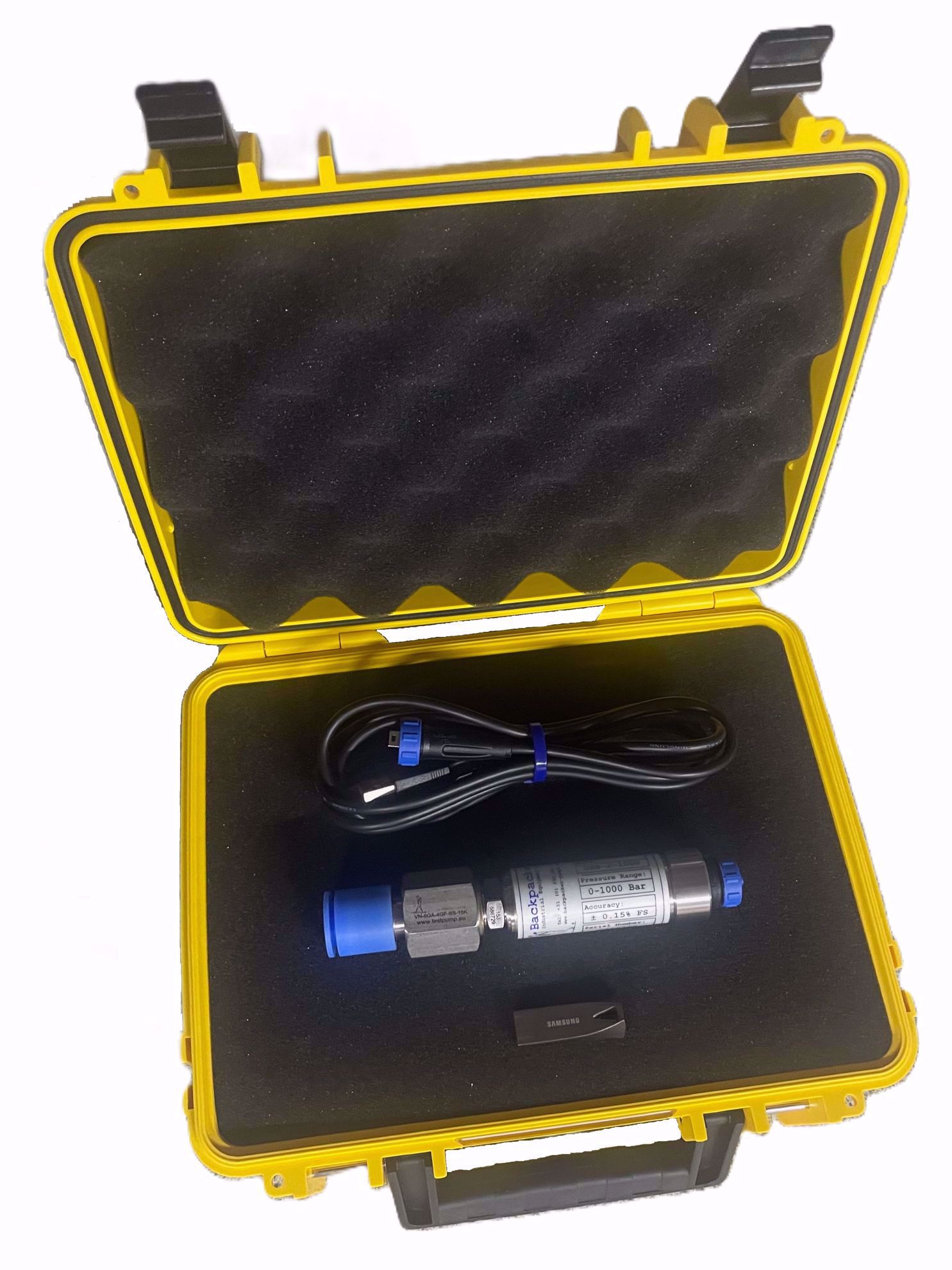

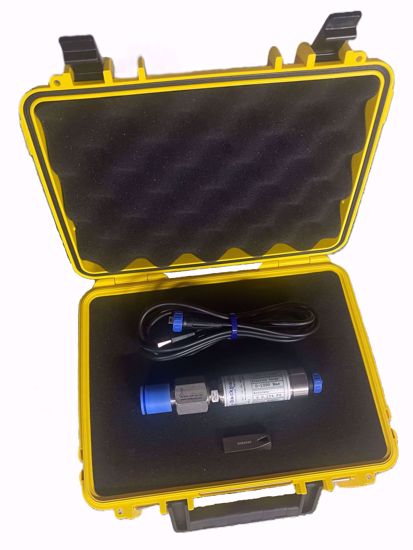

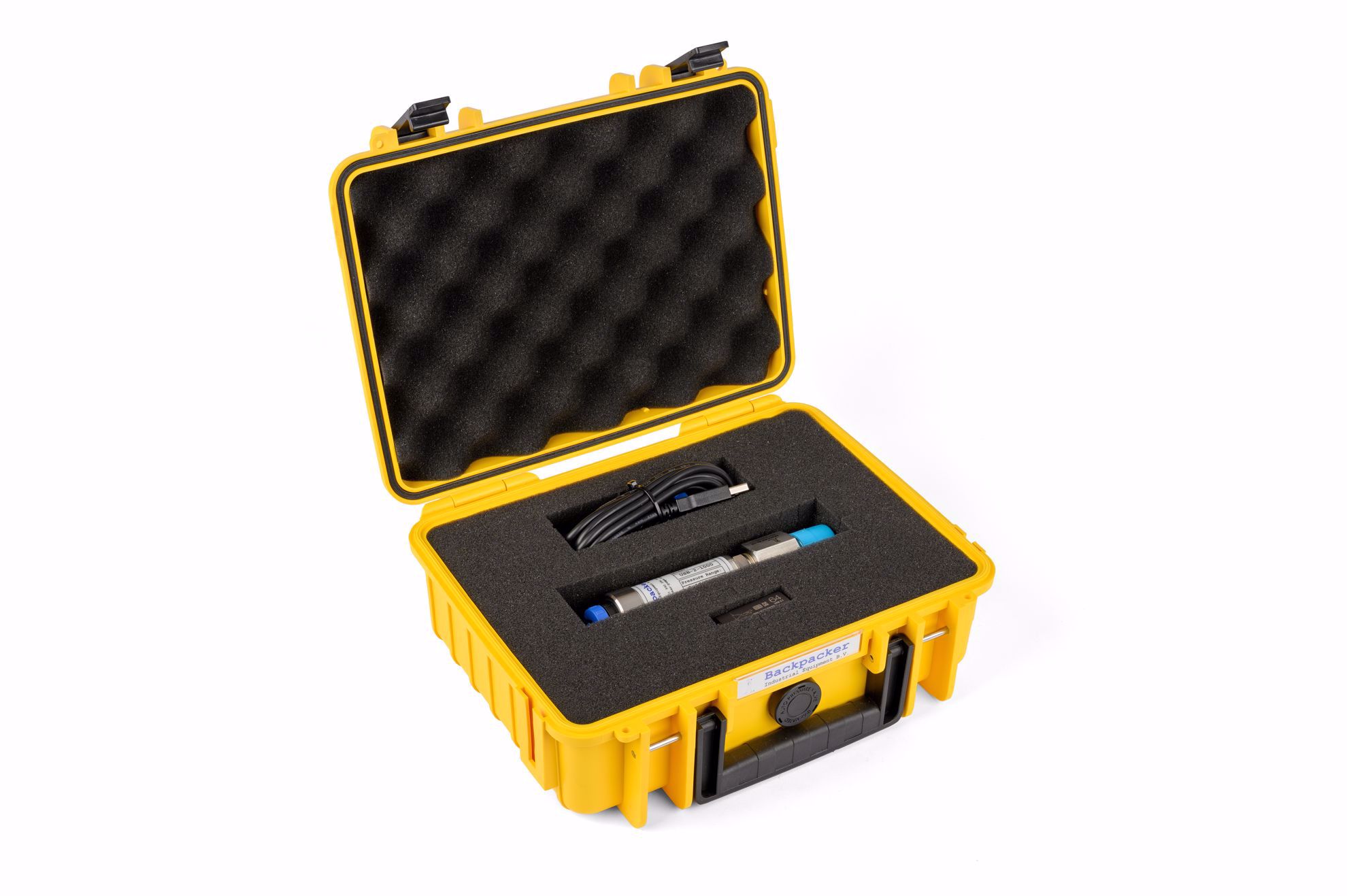

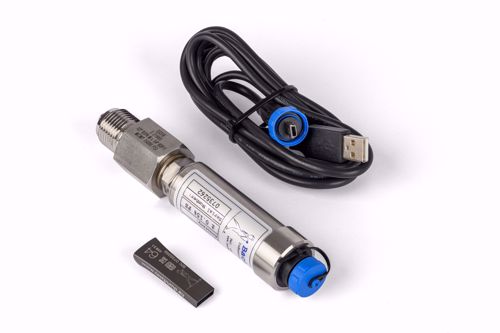

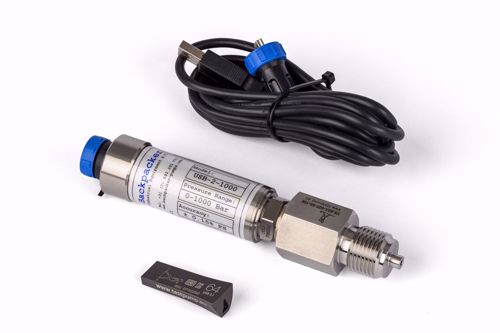

The Digital Pressure Recorder system consists of a Digital Pressure Transducer and an USB Stick with the specially developed Backpacker Pressure Recording Software. This software is designed as an Easy to Learn application and doesn't require special operator training.

From start to abandon the Temperature monitoring (°C) and Pressure monitoring (bar and psi) are displayed in all steps of the software.

Every test is automatically stored. So it’s possible to check the full history of each test even when the test wasn’t approved or when the test was unexpectedly aborted. The process is fully traceable.

Of each test a

Pressure Test Certificate

can be generated.
