Portabale 500 bar High Flow Air Driven Injection Pump

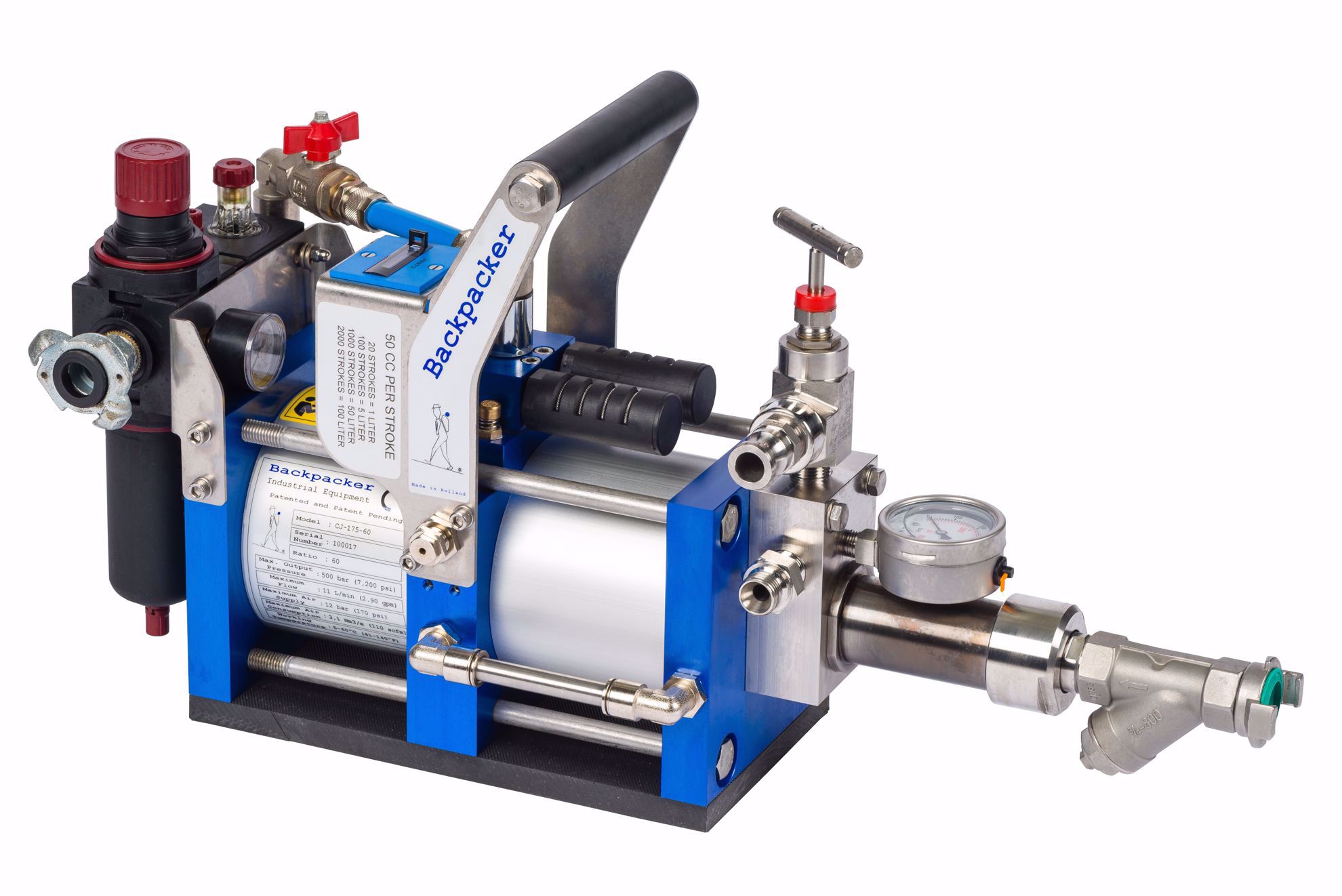

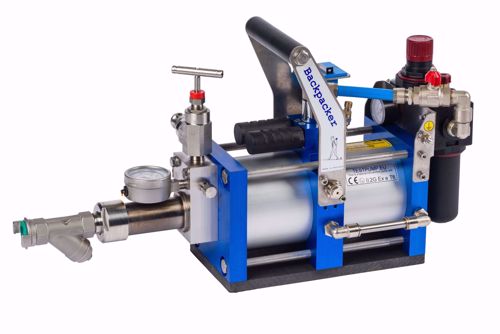

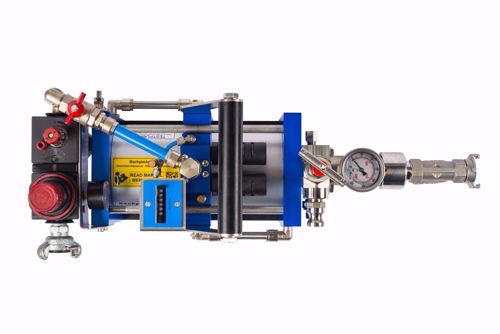

Portable 500 bar high flow Air Driven Hydraulic Injection Pump
with a weight of only 20 Kg.
Ratio 1:60
Maximum Output Pressure: 500 bar (7,200 psi)
Maximum Flow: 11 L/min (2.90 gpm)
Maximum Air Supply: 12 bar (170 psi)
Maximum Air Consumption: 3.1 Nm3/min (110 scfm)
Working Temperature: 5-60 degree Celcius (41-140 degree Fahrenheit)
The unit is a ready to use pump and includes the following components:
-0-600 bar (0-9,000 psi) hydraulic gauge for pressure indication.
-0-8 bar 1/2" Air Filter/Regulator and a 1/2" Lubricator.
-Ball Valve in the air supply to be use as a start/stop valve.
-Stainless Steel Geka fluid supply connection with a Stainless Steel 1/2" NPT Y-Strainer.
-1/2" NPT female high pressure outlet.
-1/2" Needle valve to be used as a Bleed Valve.
- Stroke Counter ( 50CC with every Stroke Count )

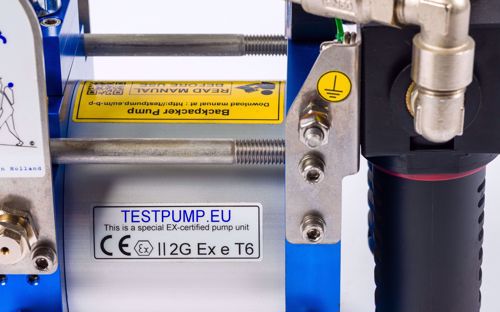

- Grounding point ( M8 Earth Boss )
High Pressure connection: 1/2"NPT female
Fluid Supply connection: GEKA
Air Supply connection: 1/2" BSP female, with US-Style Crawfoot
Bleed Valve: 1/2" NPT female
Standard compatible with the following fluids:
-Plain water
-Water / glycal mix
-Petroleum based oils
Part Number:
CJ-175-60-01-INJ
Shipping:
Ordered before 2 pm. same day shipped, except weekends and holidays (when in stock)
Questions? Call +31-(0)592-291771
