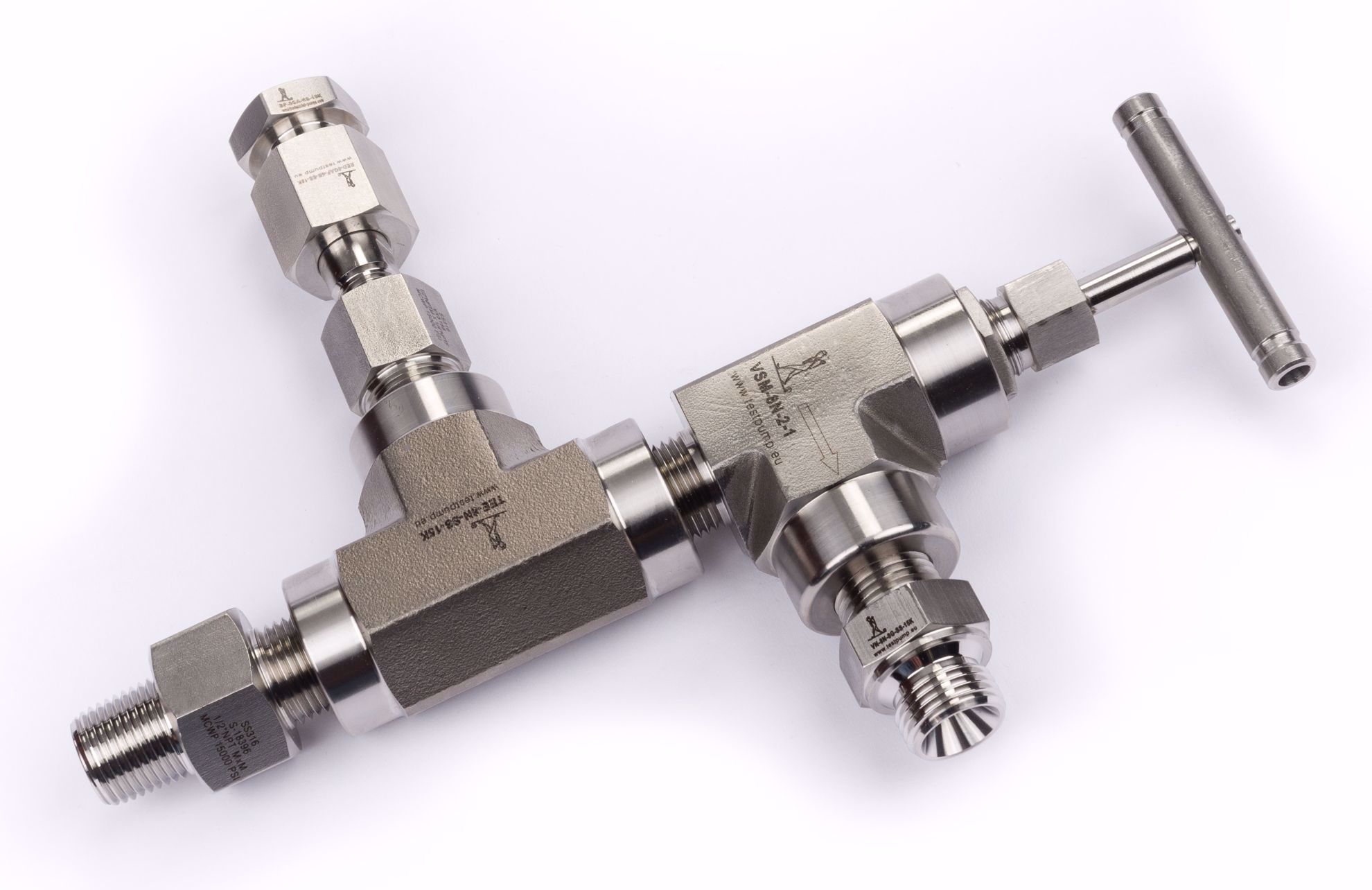

Simple Test Manifold
Simple Test Manifold
Maximum Cold working pressure 10,000 PSI / 700 bar
Stainless Steel AISI 316
Object connection : 1/2" NPT male
Hose Connection : 1/2"BSP male, 60 degree cone
Gauge Connection : 1/2" BSP acc. EN 837 female ( swivel )
The Simple Test Manifold has a Needle Valve as a Block Valve in case a inspector requires to disconnect the test hose.
And just one connection to mount a Pressure Gauge.
This manifold doesn't enables you to connect a Pressure Recorder.
Consists of:
- 1x VSM-8N-2-1 - 1/2" NPT Angled Neelde Valve - male x female
- 1x BP-8GA-SS-15K - 1/2" Gauge Connection Blind
- 1x RED-8GAF-4N-SS-10K - Adapter 1/2" BSP acc. EN 837 female swivel x 1/4" NPT male
- 1x RED-8N-4N-SS-15K - Reducer 1/2" NPT male x 1/4" NPT female
- 1x TEE-8N-SS-15K - Tee 1/2" NPT Female
- 1x DN-8N-SS-15K - Double Nipple 1/2" NPT Male
- 1x VN-8N-8G-SS-15K - Adapter 1/2" NPT male x 1/2" BSP male, 60 degree cone
This manifold doesn't come with a Pressure Gauge.
